nano CUL 433 / SIGNALduino

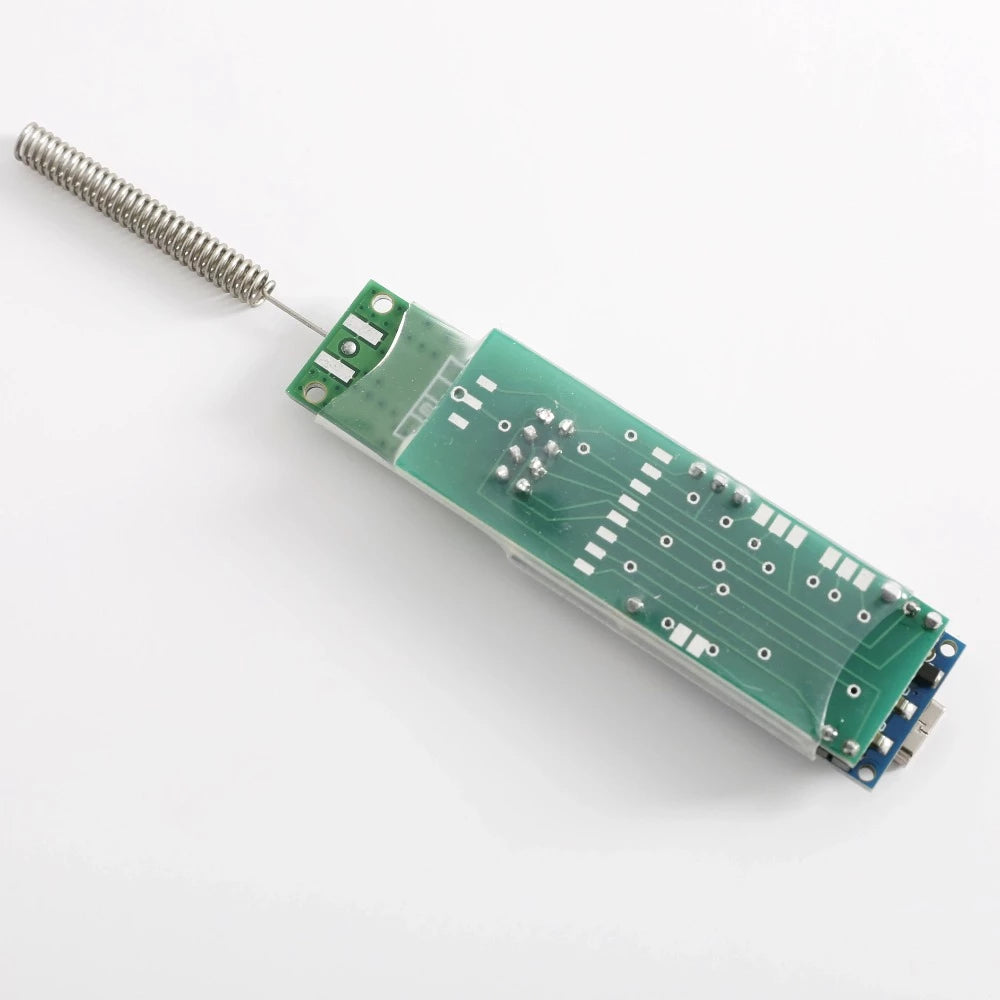

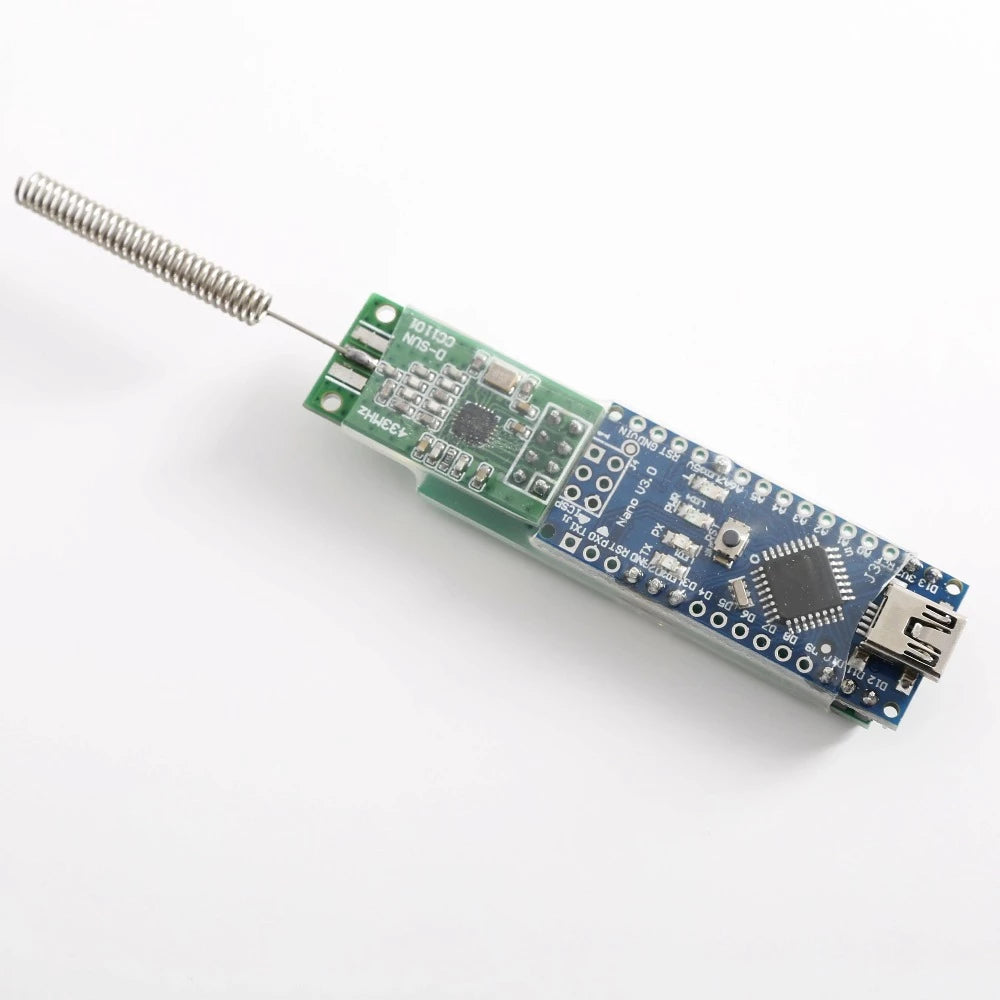

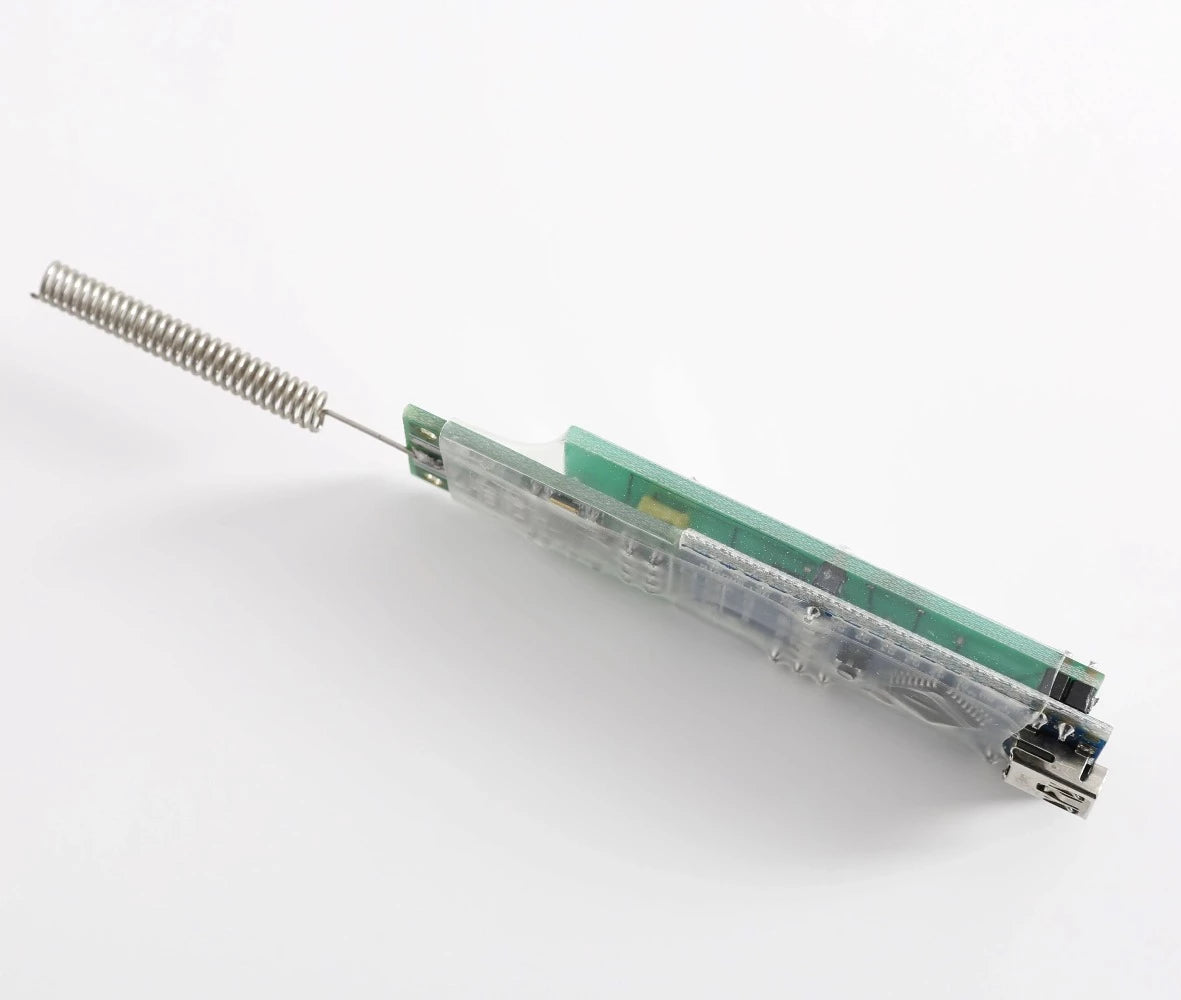

This is a nanoCUL 433MHz Mini-USB with FTDI chipset . It can be equipped with a wide variety of firmware and is ready for immediate use.

Furnishing:

• MINI USB Nano V3.0 ATMEGA328P FT232RL FTDI
• C1101 433 MHz radio module

Use:

• Intertechno 433MHz

• Somfy

• RTS

• to CCU and CCU2

Installation FHEM:

definition in fhem.cfg:
define CUL433 CUL /dev/serial/by-id/usb-FTDI_FT232R_USB_UART_A50285BI-if00-port0@38400 0000

 Installation CCU + CCU2:

In the CUxD setup:

TTYPARAM=ttyUSB0:38400:8N1
TTYASSIGN=ttyUSB0:CUX

 Version:

• V1.67 nanoCUL433
• aculfw 1.26.00
• SIGNALduino

A MINI-USB adapter can be added under accessories .
