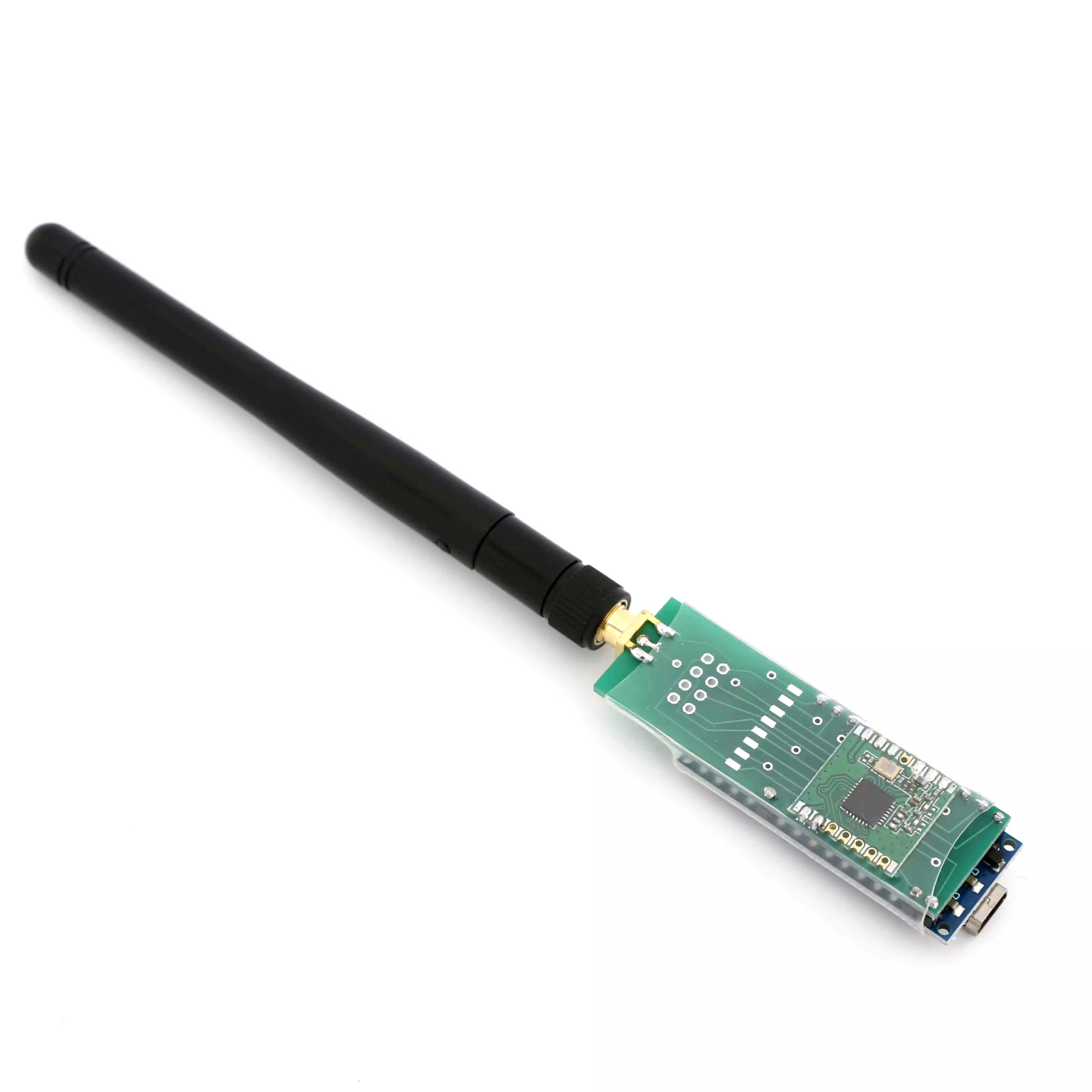

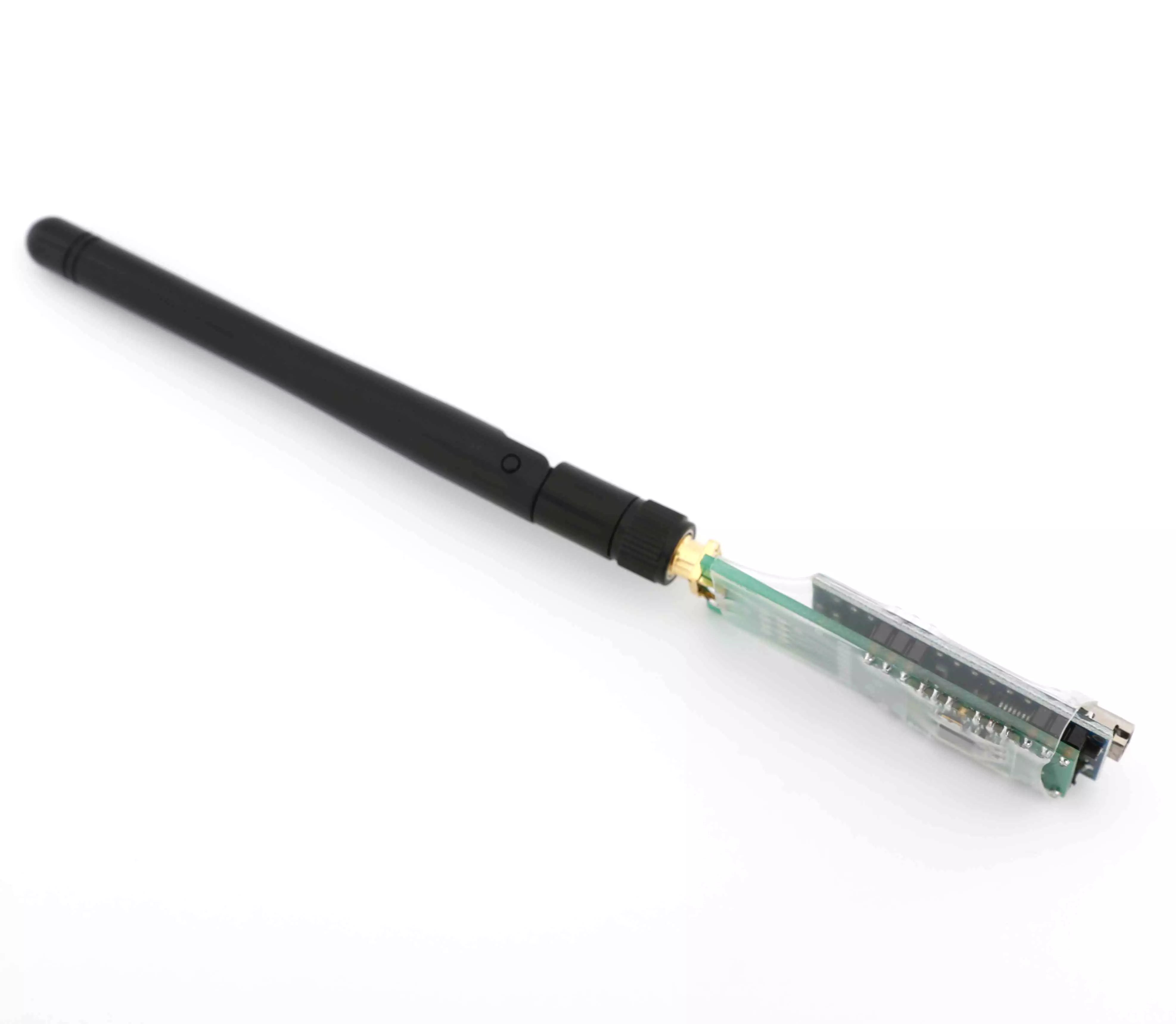

Jeelink 868 LaCrosse with external bend antenna

This is a JeeLink 868MHz Mini-USB. It is equipped with the Lacrosse firmware and is ready for immediate use.

Furnishing:

• MINI USB Nano V3.0 ATMEGA328P FT232RL FTDI
• Hope RFM69CW 868 MHz radio module

• 10cm Eightwood 868MHz-870Mhz Vertical Omni Directional Antenna

Use:

• Technoline sensors

Installation FHEM:

definition in fhem.cfg:
define LaCrosse JeeLink /dev/serial/by-id/usb-FTDI_FT232R_USB_UART_A50285BI-if00-port0@57600

Installation CCU + CCU2:

In the CUxD setup:

TTYPARAM=ttyUSB0:57600:8N1
TTYASSIGN=ttyUSB0:CUX

Danger!!! If the Jeelink runs on a CCU or CCU2, slightly adapted firmware is required

Version:

• LaCrosseITPlusReader 10.1s
